General Data:
- Empty weight of standard aircraft: 2,915 lbs.
- Maximum takeoff weight: 4,960 lbs.
- Useful load: 2,045 lbs.
- Maximum takeoff weight (with external load): 6,172 lbs.
- Usable fuel capacity (standard tank): 143 gal.
- Powerplant: 1
- Turbomeca Arriel 2B
- Cabin volume: 105.94 cu. ft.
- Baggage compartment volume: 35.3 cu.ft.
- Standard seating capacity: 1+5
Performance Data*
- Never exceed speed: 155 kts.
- Fast cruise speed: 137 kts.
- Maximum range (with no reserves): 349 nm.
- Maximum endurance (with no reserves): 4.2 hrs.
- Hover In ground effect ceiling (5 ft. skid height): 11,600 ft.
- Hover out of ground effect ceiling: 9,450 ft.
- Takeoff power: 847 shp.
- Rate of climb: 1,818 fpm.
* Performance data is provided at Sea Level, ISA conditions, maximum gross weight, with standard fuel. It is not intended for flight planning purposes.

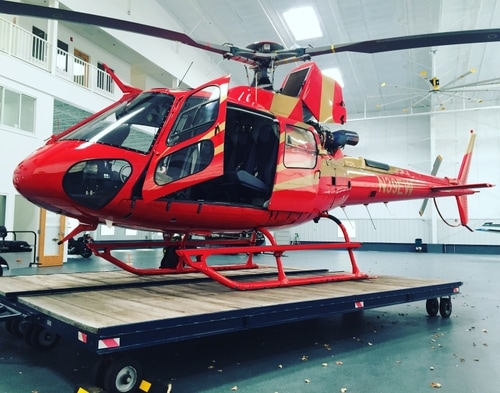

Eurocopter AS350B3 at a Glance:
- Max weight: 4,960 lbs.
- Capacity: 1 pilot + 5/6 passengers
- Powerplant: 1
- Turbomeca Arriel 2B
- Fast cruise: 137 kts.
Documentation:
- AS350 technical files
External Dimensions:
- Overall length with blade in front: 42.4 ft.
- Minimum width with all blades: 35.1 ft.
- Overall width with blades folded: 8.3 ft.
